Magconn

What is Magconn?

Modern Design and
Innovative Engineering Solution

Magconn modules provide designers and engineers with exceptional
design flexibility. These modules are waterproof and dustproof (IP68 rated)
with a slim design of approximately 1mm.

Contact Sales

What is Magconn?

Technical Details

The Magconn module uses Auto Pin-positioning to ensure
perfect wireless charging alignment, delivering much higher
energy efficiency than traditional methods. It's ideal for use in
a wide range of electronic devices.

Shop Now

Magconn Modules

Magconn is wireless charging solution and capable of data transfer by coupling RX and TX.

Magconn Modules

Features

7 Key Features of Magconn Technology

01.

Auto alignment

- Automatically aligns to the charging port using magnets.
- Started 2009
02.

Efficiency 98-99%

- Conductive charging
- No heating issue.
03.

Data sync Wireless charging

- Charging+Data communication.
04.

IP68 waterproof

- Suitable to apply various product and industrial field.
05.

User Convenience

- Easy attachment&detachment.
- 360 degrees rotation
06

Strong IP

- Global IP Portfolio
- US/JP/EP/CN/KR
07.

No extra certificates

- Applying Magconn Solution to a product does not require any additional certification.

Magconn Modules

Distributor / Startups
Powered by Magconn

We are open and would love to collaborate with the new generation of
entrepreneurs. Let's build our future together.

Explore Projects

Magconn
Technology

Magconn is a new concept of wireless charging way combinding the technology of conductive
wireless charing and DATA SYNC solution functions with simple and user friendly interface.

Magnetic connector technology
Conductive wireless connection
Cost-Effective
technology
High Speed data sync.
(M21 version meet USB2.0)
User friendly design-
Don’t need to plug in and out Just attach and detach
High Charging Efficiency
(more than 97%)

Magconn Technology

Applications

Magconn technology can be applied to various mobile devices such as smartphone, Tablet PC, medical IT devices,
wearable watch, power bank, RFID scanner, IT devices for education, various accessories, etc.

Magconn Technology

M21 RX & TX Module

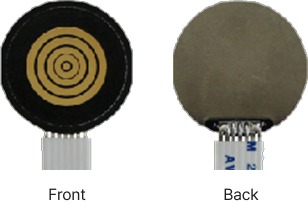

RX Module Specification (M21OC-RXC2M-(01))

M21OC-RXC2M-(01)	Item	Rated Value
	RX Total thickness	1.3mm ±0.1mm
	Product weight	1.5g ±0.2g
	Magnet / Strength	12pi x 1.0T N48M / min1100G
	Contact ring count	5ring
	Connector color	Black
	Connection surface	Gold

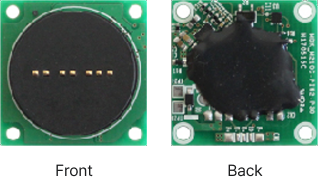

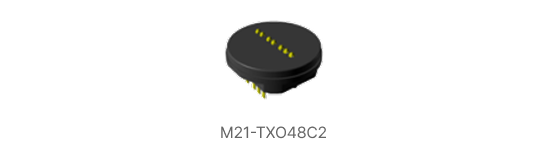

TX Module Specification (M21-TXO48C2M-(04))

M21-TXO48C2M-(04)	Item	Rated Value
	TX module size	23mm x 23mm x 5.6mm(D)
	Magnet / Strength	12pi x 3.3T / N48M
	Data transmission speed	480MPS(meet USB2.0)
	Contact pin	7 pins
	Input cable information	26AWG *7C / Molex

TX / RX Module Reliablity

Item	Rated Value
Operating Temperature range	-10°C ~ 50°C
Operating Humidity range	20 ~ 80%
Storage Temperature range	-20°C ~ 70°C
Storage Humidity range	10 ~ 95%
Rated voltage	5V-12VDC
Rated current	Max 3.0A (15W)
Insulation resistance	250MΩ min. / 250VDC
Dielectric Withstand Voltage	350VAC for 1minute
Electrostatic discharge	±15KVDC air ±8KVDC contact
RX Attachment/detachment life	50,000 times (with TX module)
RX Rubbing test(up/down)	20,000 times (with TX module)
RX Rubbing test(360 degree)	20,000 times (with TX module)

Magconn Technology

Maconn Connector Spec.

1.5A
3A
10A

Download File

Description	RX Module	TX Module
Shape

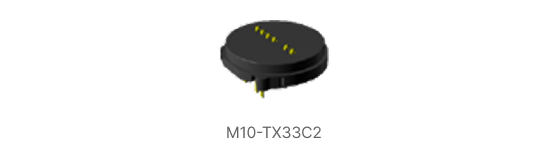

Model	M10DC-RXC2-07B	M10-TX33C2B
Function	Power (5V, 1A) & Sync (USB2.0)
Size	4rings / 13.6pi*0.7T	6pins / 13.3pi*3.3T

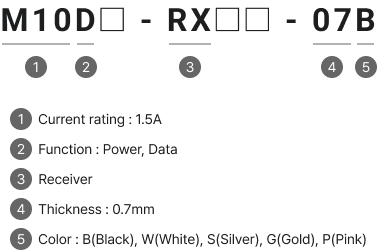

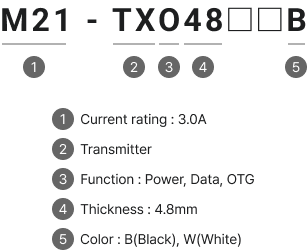

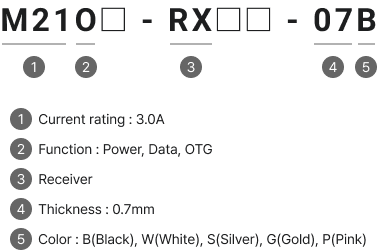

Part Number

Download File

Description	RX Module	TX Module
Shape

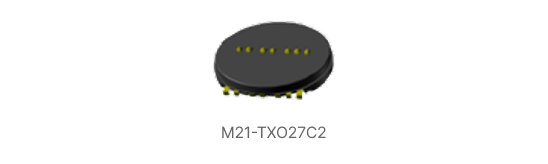

Model	M21OC-RXC2-07B	M21-TXO48C2B
Function	Power (5~12V, 2.1A) & Sync (USB2.0) & OTG
Size	5rings / 18.9pi*0.7T	7pins / 18.85pi*4.8T
Part Number

Download File

Description	RX Module	TX Module
Shape

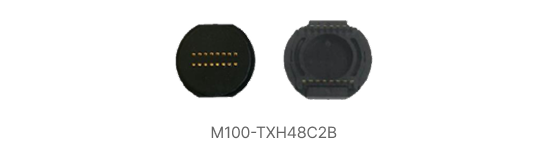

Model	M100PC-RXC2-07B	M100-TXH48C2B
Function	Power only (5~24V, Max10A, Max100W)
Size	2rings / 19.7pi*0.7T	16pins / 19.5pi*4.8T

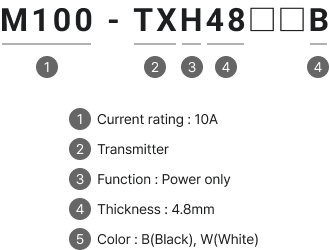

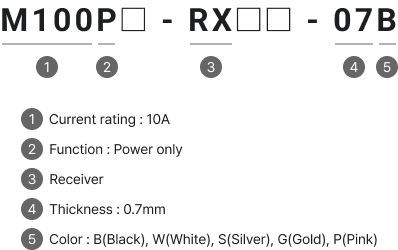

Part Number

Magconn Technology

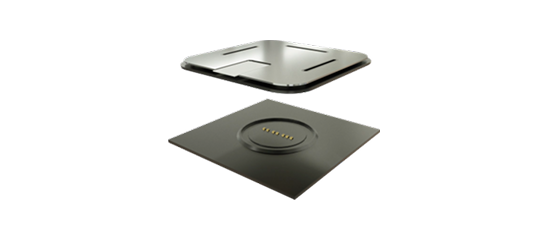

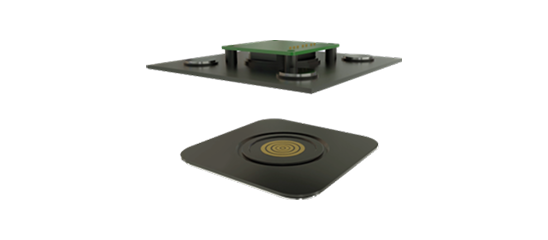

RX & TX Coupling

Index	Magconn RX		Magconn TX
Module

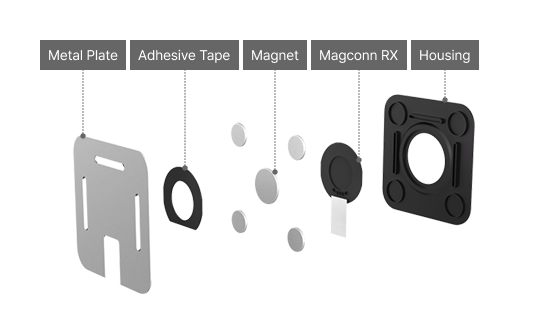

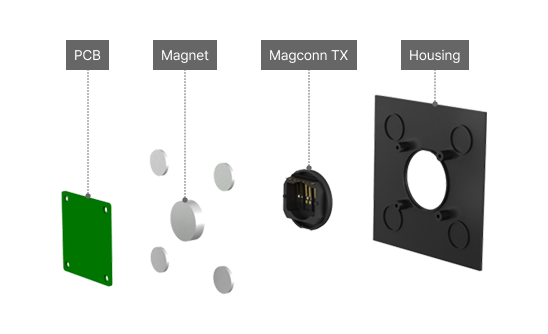

Exploded View
M10
M21
M21
M100

Magconn Technology
Comparison

Magconn is a conductive wireless charging and data sync technology
with an automatically pinpointing magnetic connection capability.

Index		Qi (wireless)	Pogo pin (plug-in type)
Charging	O	O	O
DATA Sync.	O	X	O
Energy Efficiency	97% ↑	50~70%	97% ↑
Auto Positioning	O	O or X	X
Durability (cycle min.)	> 50K	-	< 10K
Easy to Clean	O	O	X
EMI Issues	O	X	O

Magconn
Eco-system

Magnetic IoT Interface
for Seamless Connectivity

Magconn is adaptable to IoT devices in all industries.
Applicable to all fields such as Hotel, Restaurant, Medical, Vehicle,
Education, Security, Factory, Home, etc. (Power, Data sync)

Magconn Eco-system

Applications

The Magconn module uses Auto Pin-positioning to ensure perfect wireless charging alignment, delivering
much higher energy efficiency than traditional methods. It's ideal for use in a wide range of electronic devices.
